Product Family
Carina
ELAC Carina Speakers, where innovation and sonic brilliance converge to redefine the boundaries of audio excellence. At the heart of this series lies a technological marvel – the iconic Jet Tweeter. Elevating the listening experience to new heights, the Jet Tweeter is a testament to ELAC's commitment to pushing the boundaries of speaker design.
BS2434
CC2414
FS2474
Aluminum Woofer
Compound Curvature Cone
Utilizing a single piece cone construction with compound curvature, the cone has been optimized for extended response and pure piston operation throughout its operating range, to seamlessly blend with the JET tweeter. A rigid cast chassis supports an oversize magnet with large vented pole piece to maximize drive force, minimize non-linearity and provide increased power handling and dynamic impact.
Air Motion Tweeter
JET
Delivering true high-definition sound, ELACs JET tweeters have been at the forefront of tweeter performance, providing extended high frequency response, wide directivity and high efficiency for lightning-fast response and wide dynamic range.
Downward Firing
Port
The die cast double flanged super silent bass reflex port on Carina faces downwards, exiting the bottom of the speaker cabinet to be redirected outwards, minimizing vent noise and allowing for a more flexible speaker placement.
Floor standing models have rear and down firing ports to deliver incredible low end extension
Elac Carina Bookshelf Speakers - BS 243.4
ELAC Carina Bookshelf Speakers, where precision engineering meets audio excellence. At the heart of these speakers lies the exceptional JET tweeter, a hallmark of ELAC's commitment to delivering uncompromised sound quality. The Carina Bookshelf Speakers redefine the listening experience, offering a perfect blend of innovative design and cutting-edge technology. With a downward-firing bass reflex port for versatile placement and minimal noise, these speakers create an immersive audio environment. Explore the depths of your favorite music and movies with the rich, detailed sound reproduction that only the ELAC Carina Bookshelf Speakers can provide. Elevate your audio journey to new heights with a speaker system that embodies the essence of superior craftsmanship and sonic perfection.
JET Air Motion Transformer Tweeter
Delivering true high-definition sound, ELAC’s JET tweeters enthrall with its lightning-fast response and wide dynamic range, offering minimal distortion, lots of headroom and a wider frequency range. The ELAC JET tweeter is one of the most legendary tweeters in the industry and has won international praise with its transparent and effortless sound image.
Compound Curvature Aluminum Woofer
To complement the prowess of the JET tweeter and ensure a smooth shift from the woofer, an innovative compound curvature cone has been engineered. Its purpose is to effectively manage cone breakup, extending it far beyond the woofer's operating range. Further enhancing the speaker's capabilities, a sizeable voice coil and an oversized vented pole piece magnet have been integrated, delivering exceptional bass dynamics and a robust, powerful performance.
Downward Firing Port
The bass reflex port on the Carina series is designed to exit downward from the bottom of the speaker cabinet, allowing for greater flexibility in speaker placement and reducing ventilation noise.
Acoustically Optimized Cabinets
Each Carina enclosure undergoes meticulous engineering, featuring sturdy MDF outer walls and an elegant satin painted finishes. Strategically positioned internal bracing enhances the cabinet's structural integrity, minimizing vibrations that could otherwise distort the sound and introduce unwanted coloration.
Type:
Woofer:
Tweeter:
Crossover frequency:
Frequency range (IEC 268-5):
Sensitivity:
Recommended amplifier power:
Peak power handling:
Nominal | Minimum impedance:
Finishes:
Net Weight (each):
Dimensions (HxWxD):
2-way Vented box
1 x Aluminum cone 5-1/4
JET folded ribbon
2.7kHz
46Hz - 30kHz
85dB/2.83V/1m
30 to 150 wpc
100W
6 Ohm / 4.8 Ohm
Satin Black, Satin White
14.73 lbs / 6,7 kg
08.52 × 08.06 x 12.54 (319 x 216 × 245 mm)
RRP : R18995

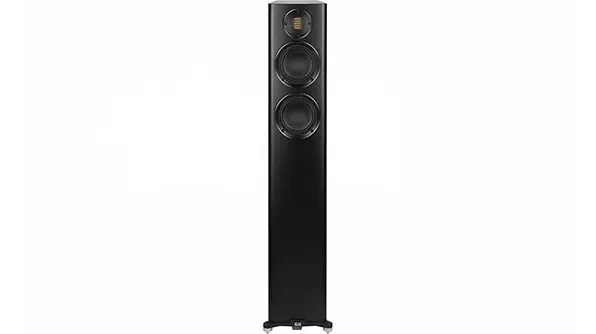

Carina Floorstanding Speaker FS 247.4
Immerse yourself in a world of captivating audio with the ELAC Carina Floorstanding Speaker, a harmonious blend of elegance and powerful sound engineering. Boasting the distinguished JET tweeter, this speaker stands as a testament to precision and innovation. Beyond delivering crisp highs and intricate details, the Carina Floorstanding Speaker takes your listening experience to the next level with its exceptional bass response. Meticulously crafted for a robust and resonant low end, this speaker ensures that every note, from the subtlest bassline to the thunderous beats, is reproduced with striking clarity and depth. Experience a symphony of sonic excellence with the ELAC Carina Floorstanding Speaker, where the JET tweeter meets unparalleled bass performance for an audio journey like no other.
JET Air Motion Transformer Tweeter
Delivering true high-definition sound, ELAC’s JET tweeters enthrall with its lightning-fast response and wide dynamic range, offering minimal distortion, lots of headroom and a wider frequency range. The ELAC JET tweeter is one of the most legendary tweeters in the industry and has won international praise with its transparent and effortless sound image.
Compound Curvature Aluminum Woofer
To complement the prowess of the JET tweeter and ensure a smooth shift from the woofer, an innovative compound curvature cone has been engineered. Its purpose is to effectively manage cone breakup, extending it far beyond the woofer's operating range. Further enhancing the speaker's capabilities, a sizeable voice coil and an oversized vented pole piece magnet have been integrated, delivering exceptional bass dynamics and a robust, powerful performance.
Downward Firing Port
The bass reflex port on the Carina series is designed to exit downward from the bottom of the speaker cabinet, allowing for greater flexibility in speaker placement and reducing ventilation noise.
Acoustically Optimized Cabinets
Each Carina enclosure undergoes meticulous engineering, featuring sturdy MDF outer walls and an elegant satin painted finishes. Strategically positioned internal bracing enhances the cabinet's structural integrity, minimizing vibrations that could otherwise distort the sound and introduce unwanted coloration.
Type:
Woofer:
Tweeter:
Crossover frequency:
Frequency range (IEC 268-5):
Sensitivity:
Recommended amplifier power:
Peak power handling:
Nominal | Minimum impedance:
Finishes:
Net Weight (each):
Dimensions (HxWxD):
2-1/2 way Vented box
2 x Aluminum cone 5-1/4
JET folded ribbon
1kHz / 2.7kHz
34Hz - 30kHz
87dB/2.83V/1m
30 to 250 wpc
120W
6 Ohm / 4.8 Ohm
Satin Black, Satin White
36.20 lbs / 16,41 kg
42.12
RRP : R35995
ELAC Carina Center Channel - CC 241.4
Welcome to a new dimension of dialogue clarity and audio precision with the ELAC Carina Center Speaker featuring the remarkable JET tweeter. Designed to excel in delivering crisp, articulate dialogue, this center speaker takes center stage in home theater setups. The JET tweeter, renowned for its precision and fidelity, ensures that every spoken word is conveyed with exceptional detail and nuance. Elevate your cinematic experience with the ELAC Carina Center Speaker, where cutting-edge technology meets acoustic excellence, creating a focal point for dialogue performance that brings your favorite movies and TV shows to life with unparalleled clarity and authenticity.
JET Air Motion Transformer Tweeter
Delivering true high-definition sound, ELAC’s JET tweeters enthrall with its lightning-fast response and wide dynamic range, offering minimal distortion, lots of headroom and a wider frequency range. The ELAC JET tweeter is one of the most legendary tweeters in the industry and has won international praise with its transparent and effortless sound image.
Compound Curvature Aluminum Woofer
To complement the prowess of the JET tweeter and ensure a smooth shift from the woofer, an innovative compound curvature cone has been engineered. Its purpose is to effectively manage cone breakup, extending it far beyond the woofer's operating range. Further enhancing the speaker's capabilities, a sizeable voice coil and an oversized vented pole piece magnet have been integrated, delivering exceptional bass dynamics and a robust, powerful performance.
Acoustically Optimized Cabinets
Each Carina enclosure undergoes meticulous engineering, featuring sturdy MDF outer walls and an elegant satin painted finishes. Strategically positioned internal bracing enhances the cabinet's structural integrity, minimizing vibrations that could otherwise distort the sound and introduce unwanted coloration
Type:
Woofer:
Midrange:
Tweeter:
Crossover frequency:
Frequency range (IEC 268-5):
Sensitivity:
Recommended amplifier power:
Nominal | Minimal Impedanz:
Peak power handling:
Nominal | Minimum impedance:
Finishes:
Net Weight (each):
Dimensions (HxWxD):
3-way Vented box
1 x Aluminum cone 5-1/4
1 x Aluminum Cone 5-1/4
JET folded ribbon
100Hz / 3kHz
50Hz - 30kHz
87dB/2.83V/1m
30 to 200 wpc
6 Ohm / 4,8 Ohm
120W
6 Ohm / 4.8 Ohm
Satin Black, Satin White
22.44 Ibs / 10,17 kg
08.34 x 24.41 x 7.79 (212 x 620 x 198 mm)
